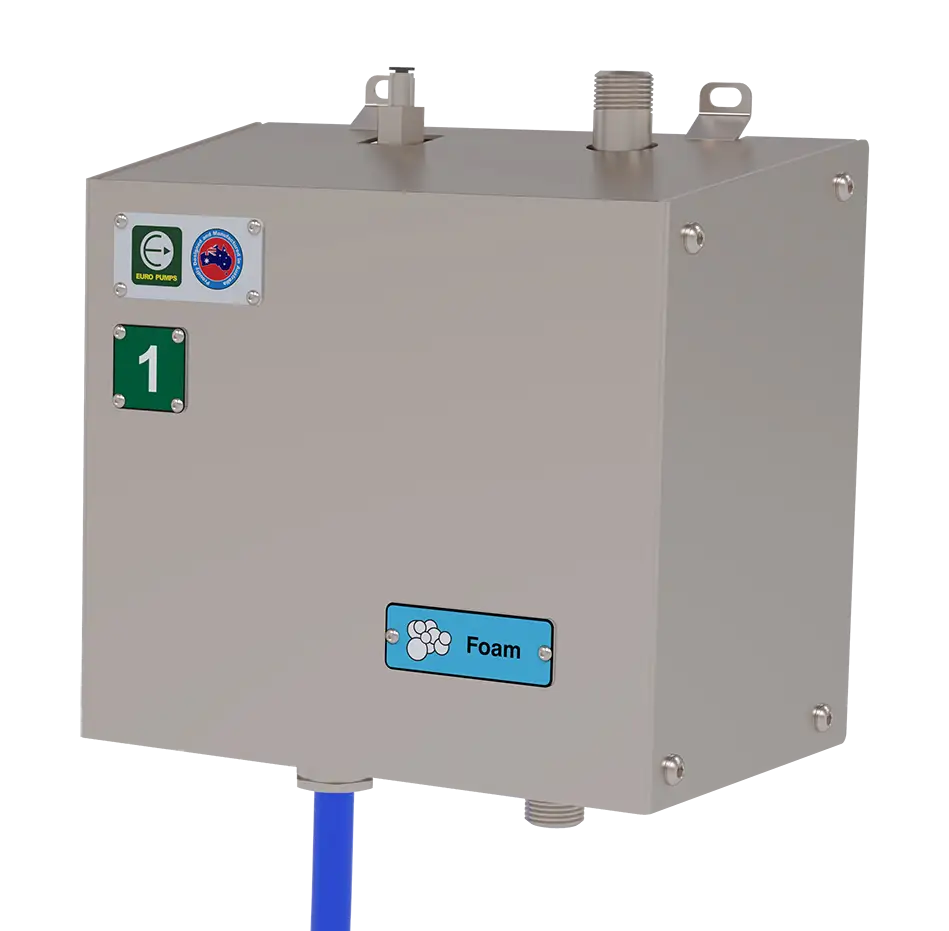

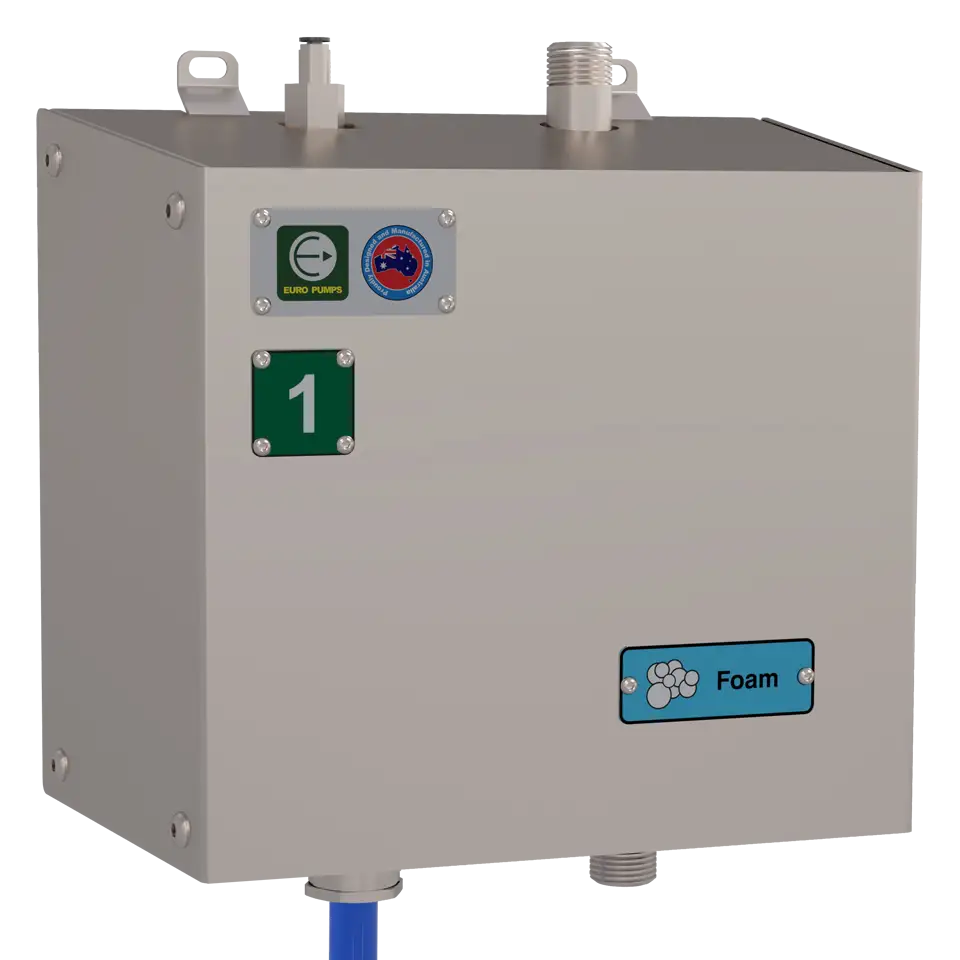

Foaming Satellite
Reliable, Serviceable, and Long-Term Value
This foam-only unit is built for reliability and easy servicing, making it a long-lasting option that reduces downtime and replacement costs compared to other brands. It works with all pressures, so it can be added to your existing cleaning setup with very little extra investment.
Australian-Made for Fast Support
Because it’s made and supported in Australia, you get easy access to maintenance. We also offer onsite support, service plans, installation help, and in-person training — giving you a level of support that sets us apart from competitors.
- Tamper proof for consistent titration and chemical usage
- Select any preferred fitting for inlet and outlet
- Number plates for identification and maintenance records
- Adjustable air regulator for installation
- Optional colour coding for chemical type
- Hoses for each pressure application available
Low Pressure Foaming Satellite
4~20 bar
Med Pressure Foaming Satellite
20~40 bar
High Pressure Foaming Satellite
40~150 bar

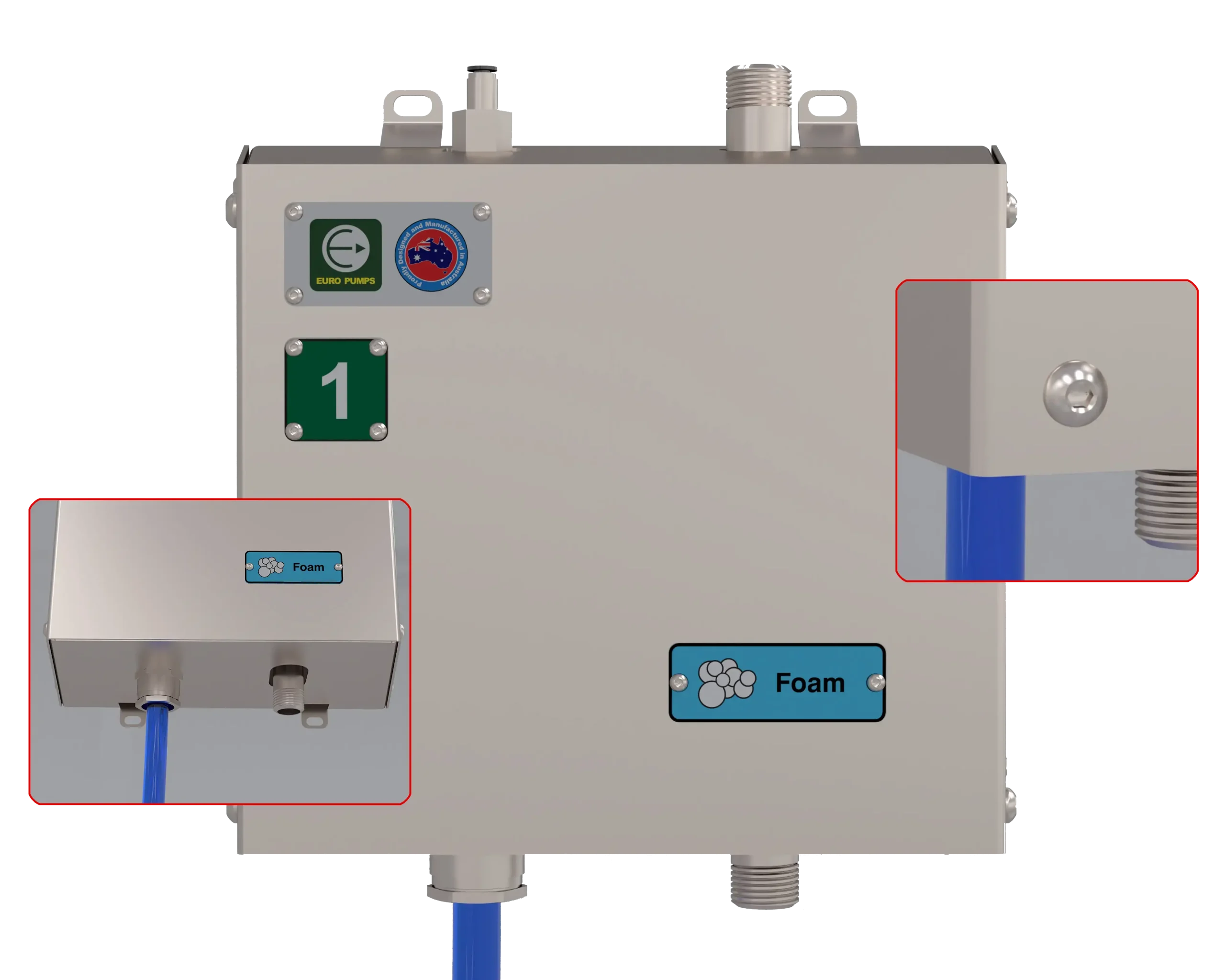

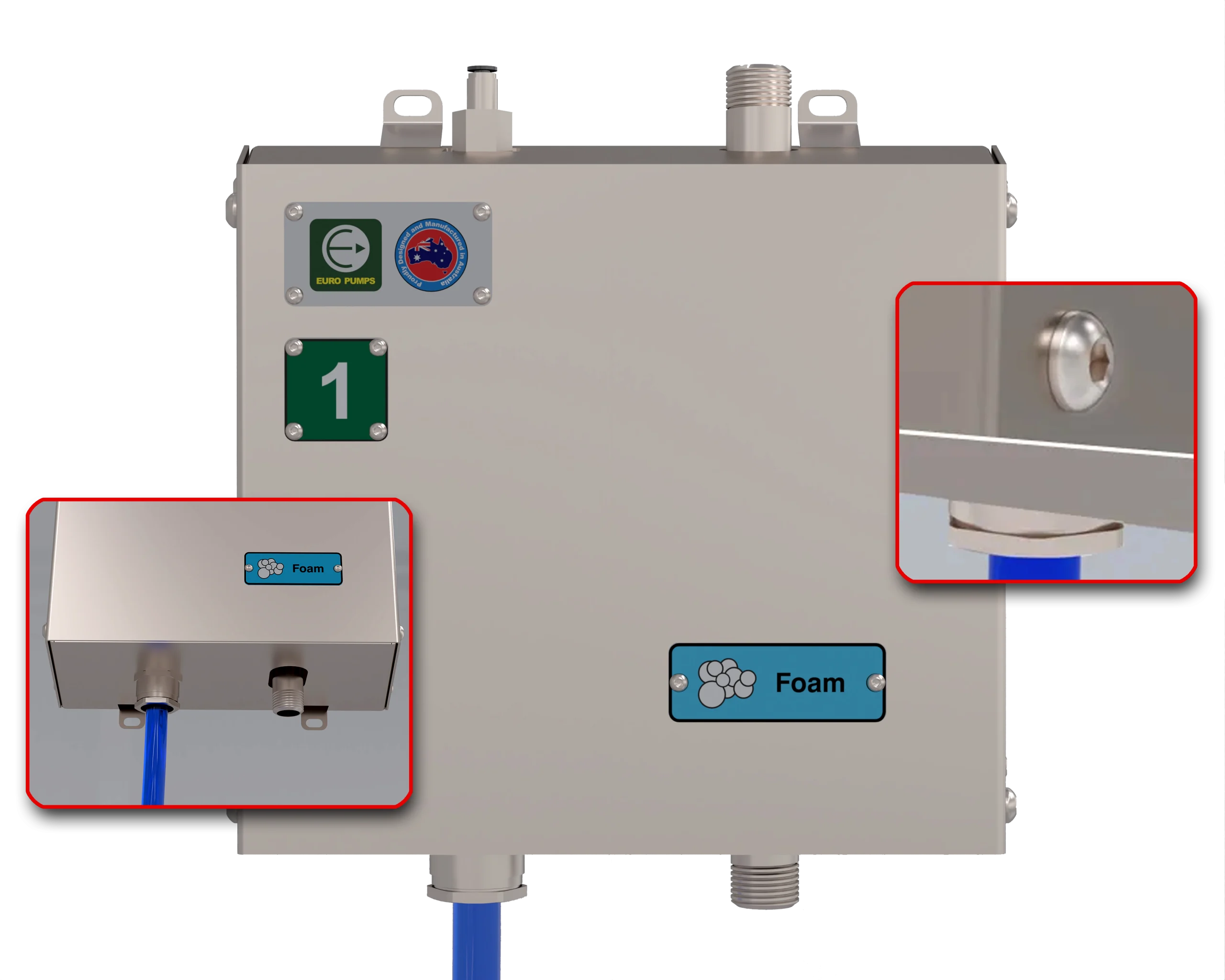

Tamper Proof
Chemical suction hose security
Stainless steel compression gland prevents the chemical suction hose from being pulled out. This prevents the insert that controls the injectors titration from be removed and results in an improved lifespan between services.
Tamper proof cover
A cover that requires tooling to remove helps prevent unauthorized access and subsequent altering of air pressure which will result in lower quality foam. This feature makes this foaming satellite truly set and forget.

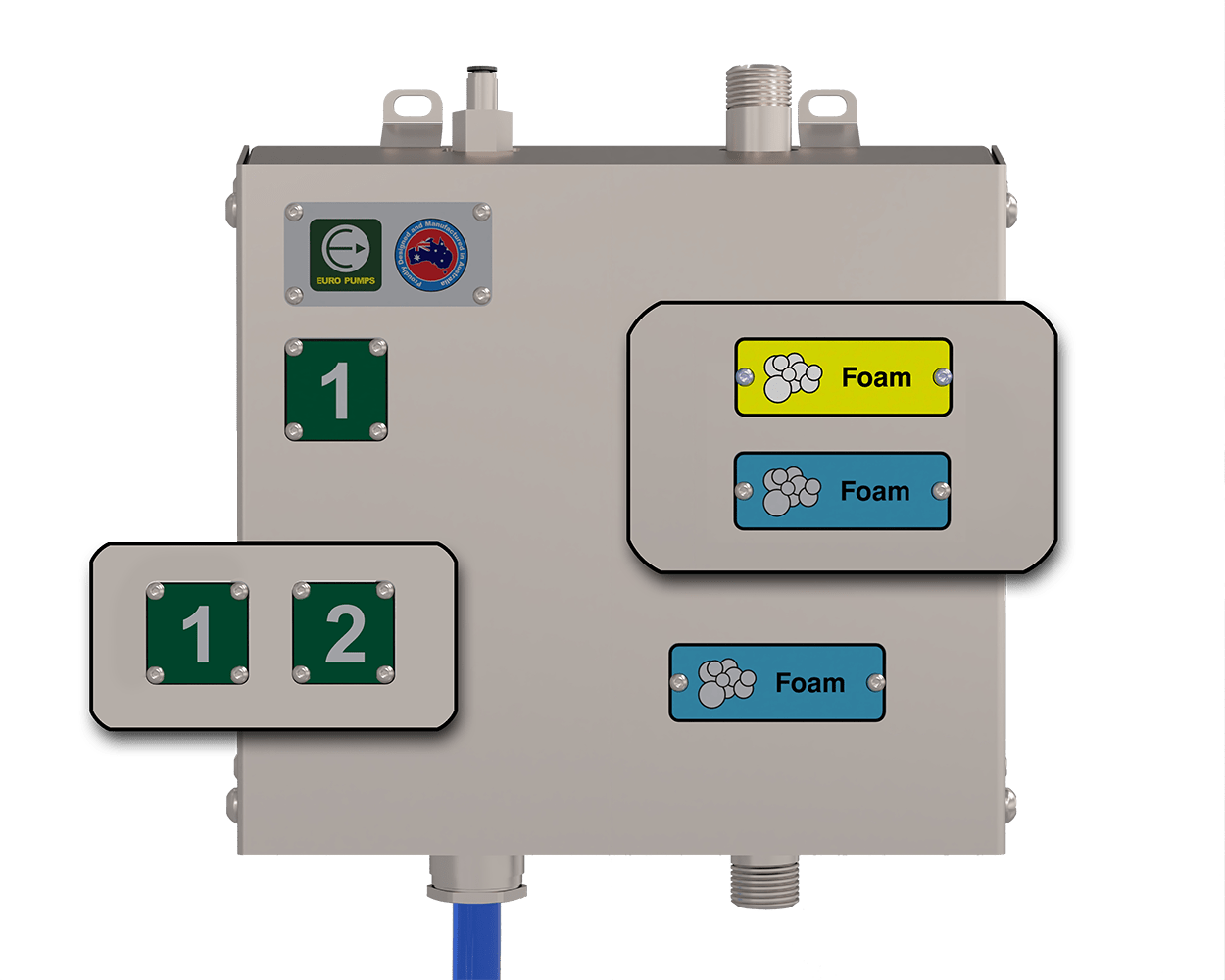

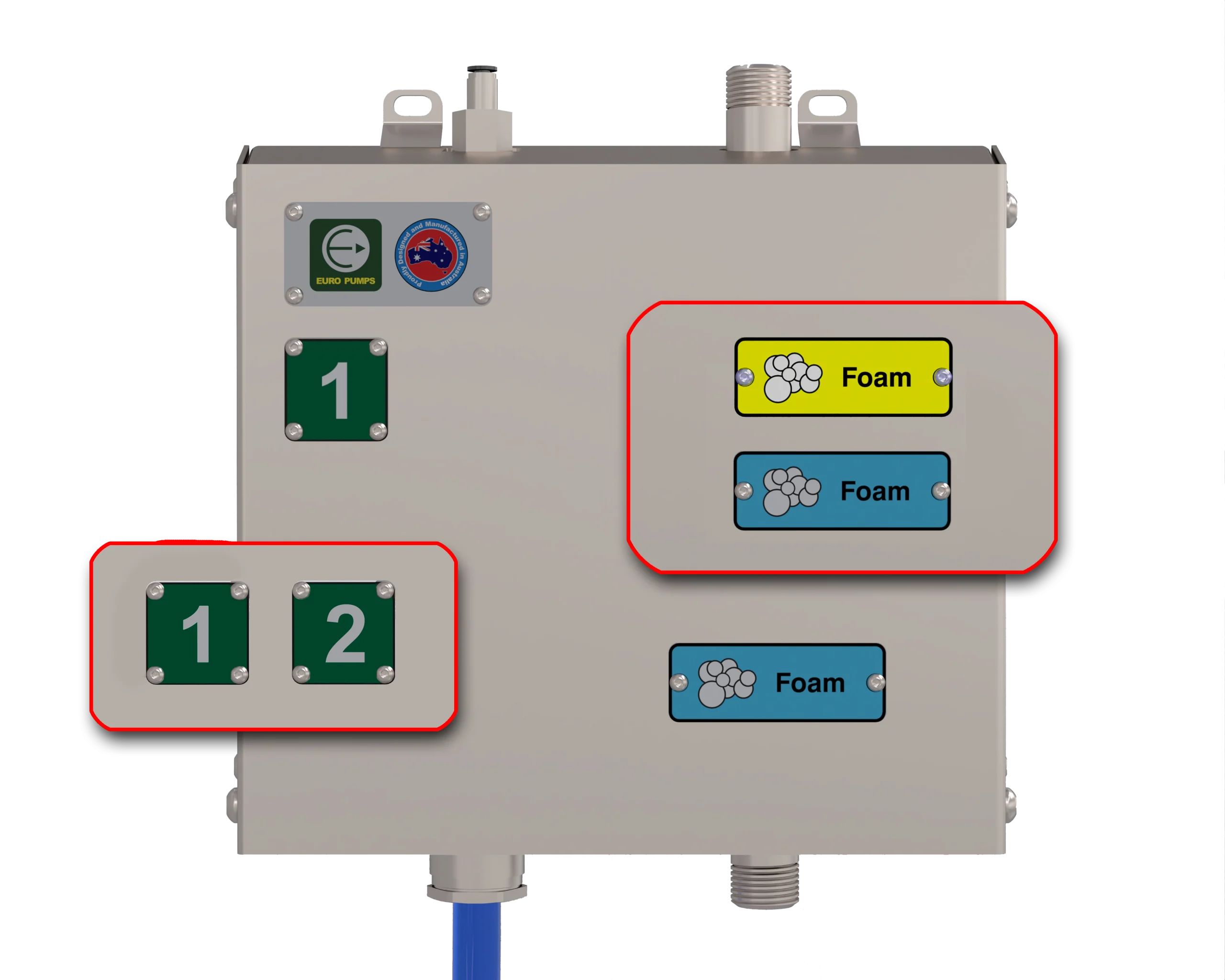

Identification
Number Plate
A number plate allows easy identification for an in-house or external maintenance plan. This feature means keeping records and problem solving is made much easier.
Colour Coding
Different colours allow for separating chemicals that are potentially dangerous when mixed or assignment to different areas on your site.
*Other colours may be available soon. If you want a different colour than what is available please enquire to see if it is possible for a special order.
Service and Warranty
Euro Pumps offers up to a 7-year warranty plan on all foaming satellites. This feature us what truly separates our product from the rest of our competition and makes it the best long term investment money can buy.
Rental Plans Available
When getting audit ready or transitioning into a new factory, a Euro Pumps rental plan could make economic sense in the short term. With garunteed service and maitenence included, renting can help be a great short term option to perfect your cleaning cycle.

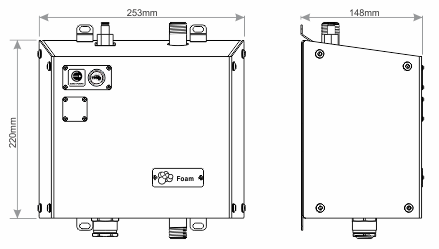

Technical Specifications
Water Inlet Size: ½ ” BSPT
Water Outlet Size: ½ ” BSPT
Max Temp: 90 °C
Air Inlet Size: 6mm
Water Pressure Range: 4~150 bar *
Operational Pressure range is set at the factory
Air Pressure Range: 1~6 bar
