Satellite

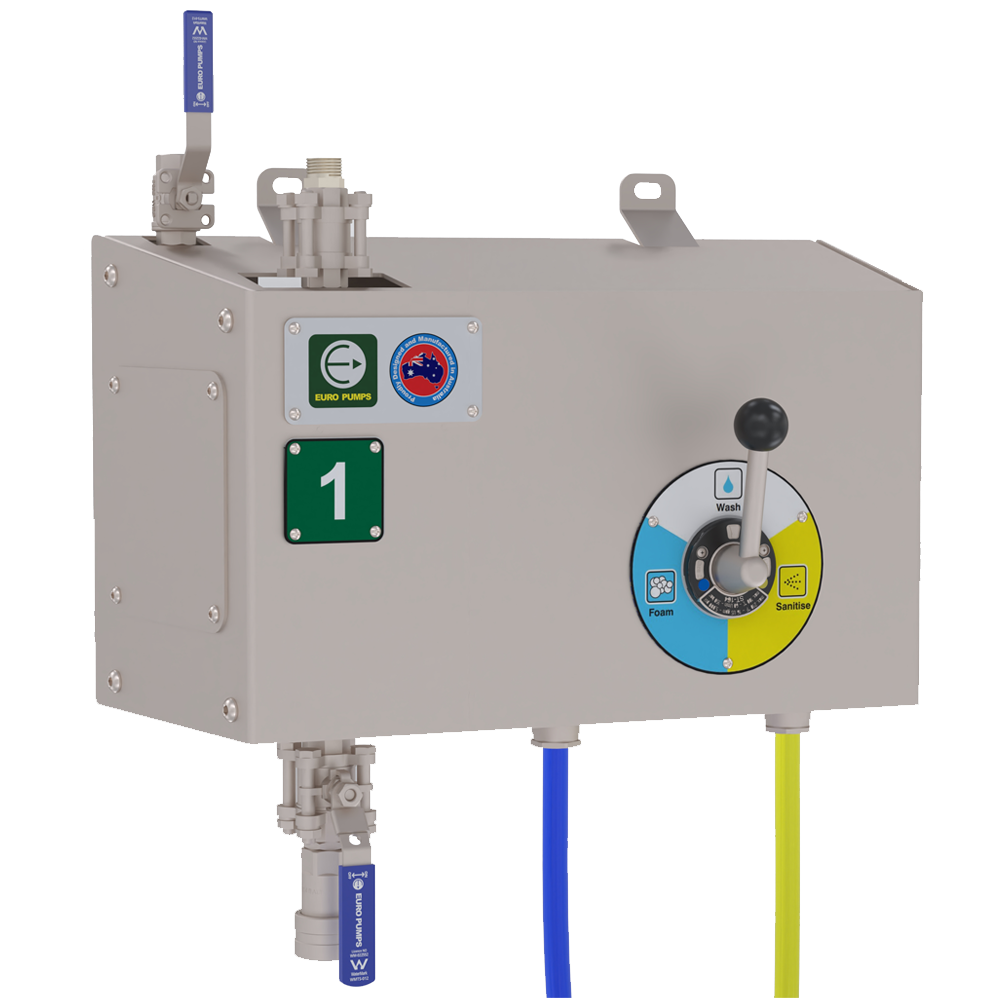

Satellite Wash, Foam & Sanitise

Reliable, Serviceable, and Long-Term Value

This satellite allows for washing and foaming applications all in one unit. It is built for reliability and easy servicing, making it a long-lasting option that reduces downtime and replacement costs compared to other brands. It works with all pressures, so it can be added to your existing cleaning setup with very little extra investment.

Australian-Made for Fast Support

Because it’s made and supported in Australia, you get easy access to maintenance. We also offer onsite support, service plans, installation help, and in-person training — giving you a level of support that sets us apart from competitors.

  • Tamper proof for consistent titration and chemical usage
  • Select any preferred fitting for inlet and outlet
  • Number plates for identification and maintenance records
  • Adjustable air regulator for installation
  • Optional colour coding for chemical type
  • Hoses for each pressure application available

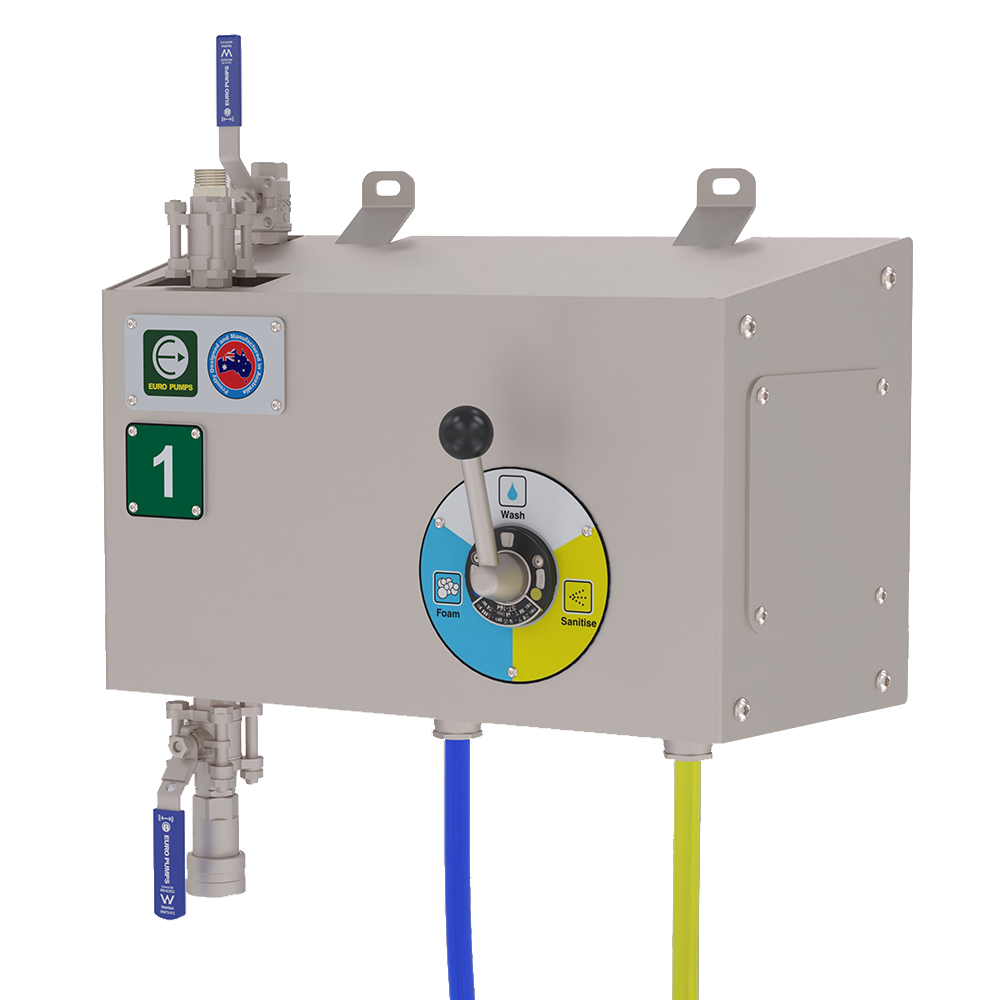

Wash, Foam & Sanitise

Low Pressure Foaming Satellite

4~20 bar

Wash, Foam & Sanitise

Med Pressure Foaming Satellite

20~40 bar

Wash, Foam & Sanitise

High Pressure Foaming Satellite

40~150 bar

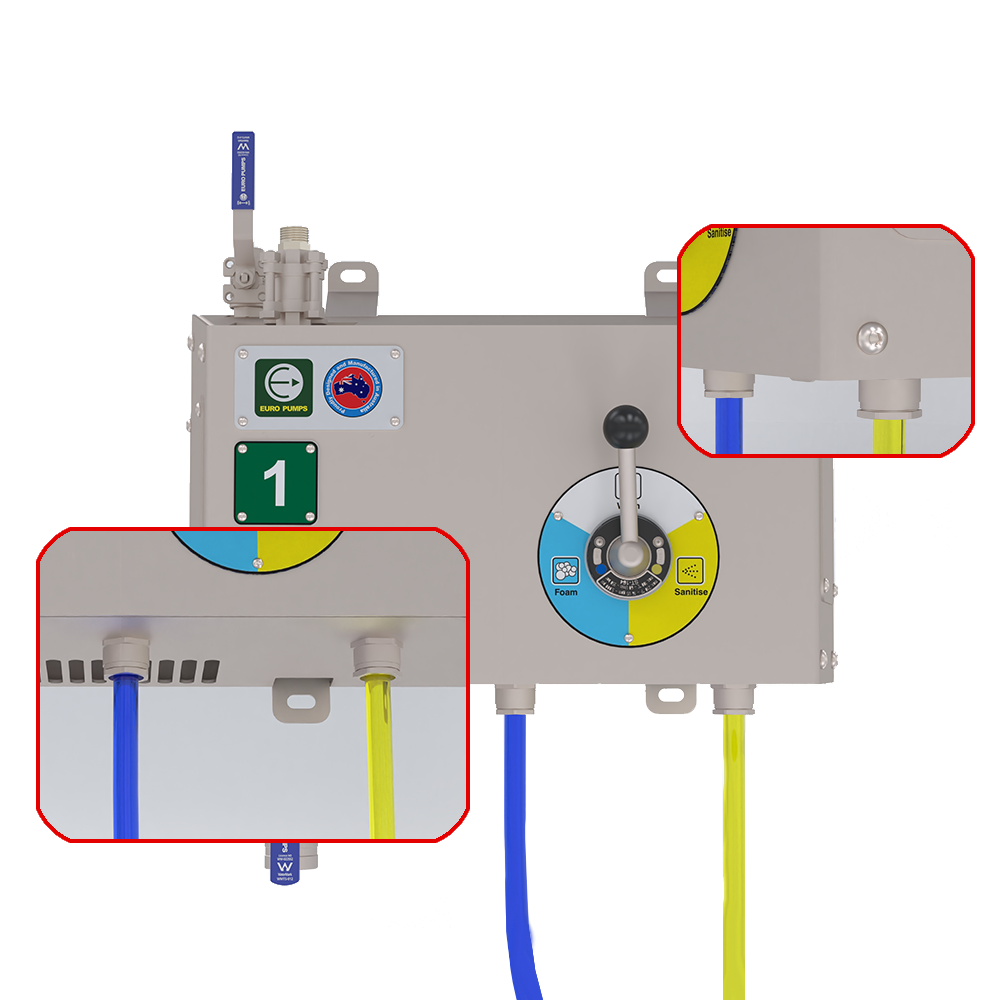

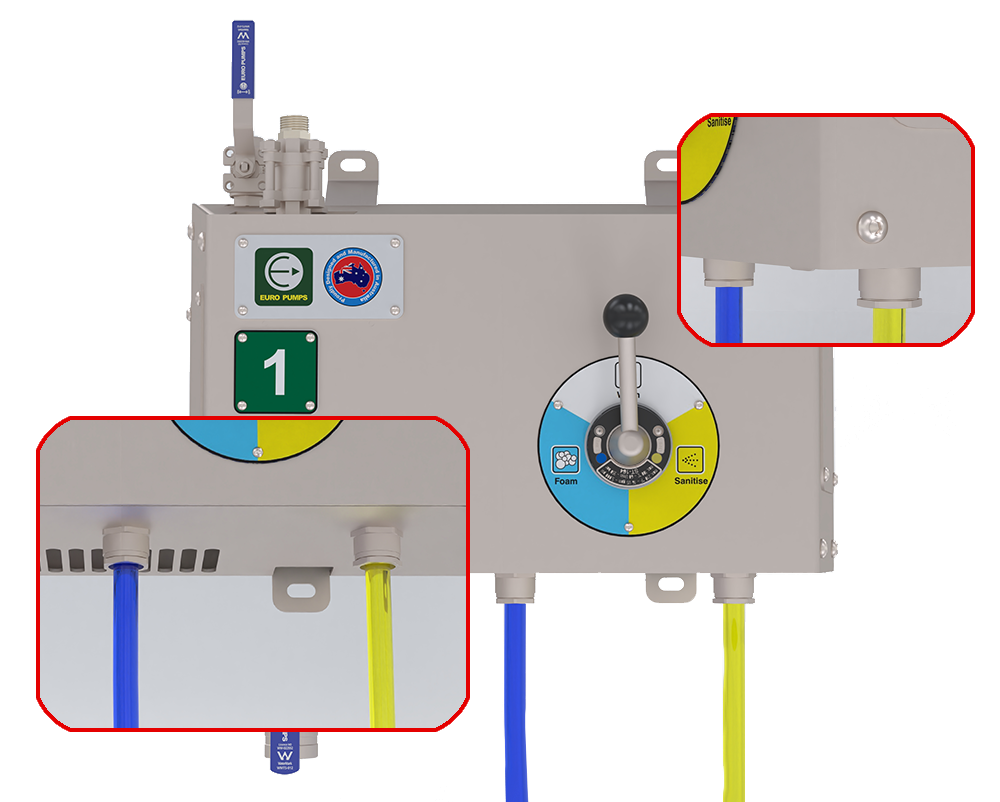

Tamper Proof

Chemical suction hose security

Stainless steel compression gland prevents the chemical suction hose from being pulled out. This prevents the insert that controls the injectors titration from be removed and results in an improved lifespan between services.

Tamper proof cover

A cover that requires tooling to remove helps prevent unauthorized access and subsequent altering of air pressure which will result in lower quality foam. This feature makes this foaming satellite truly set and forget.

Euro Pumps Satellite Tamper Proof

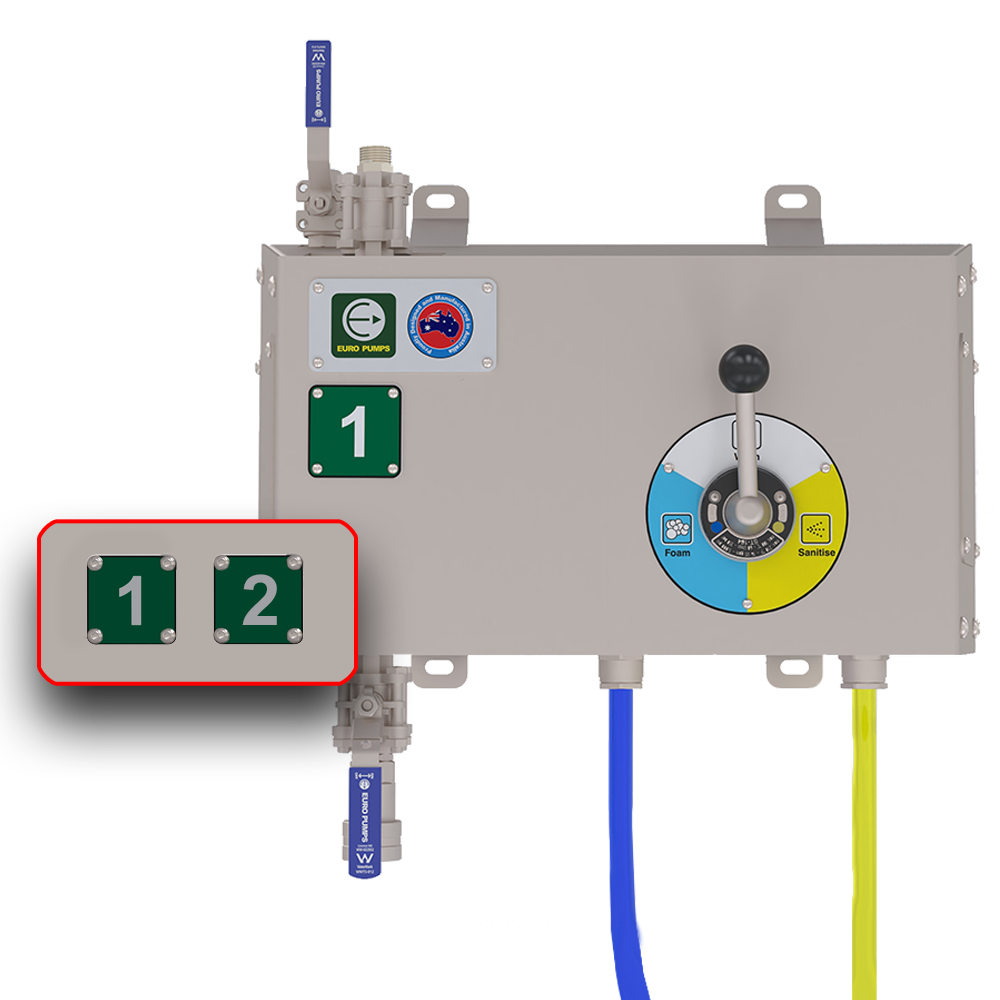

Identification

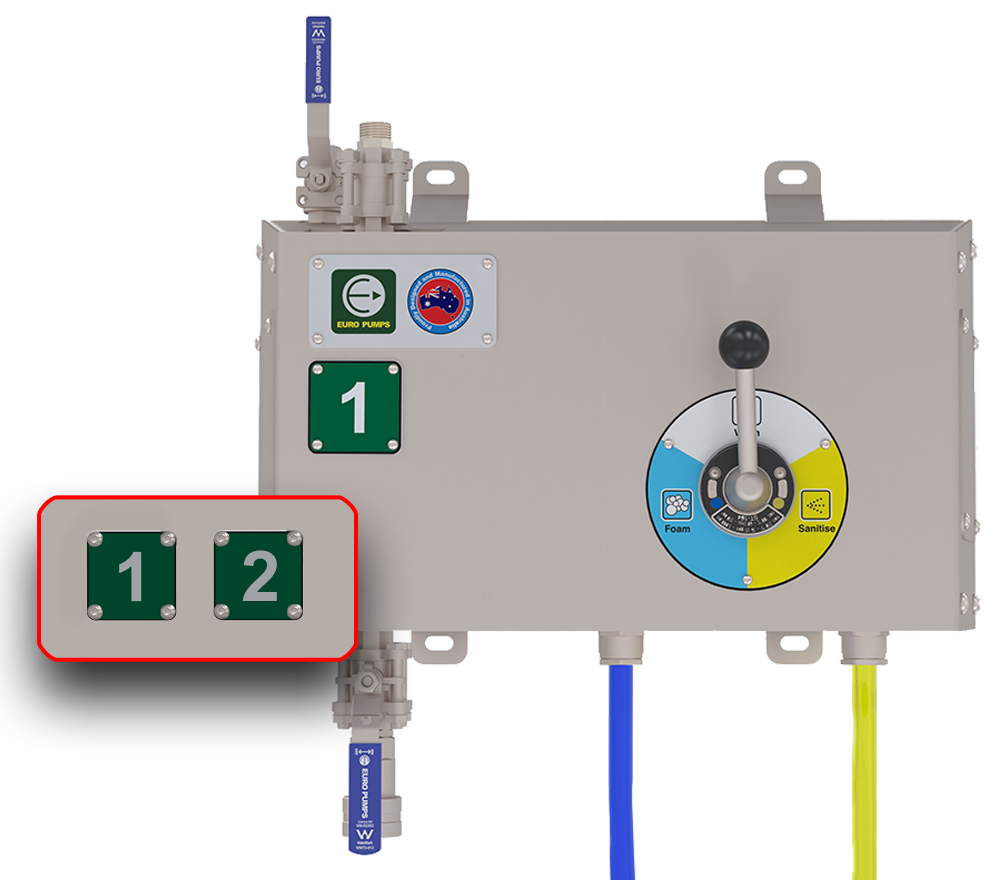

Number Plate

A number plate allows easy identification for an in-house or external maintenance plan. This feature means keeping records and problem solving is made much easier.

Euro-Pumps-Satellite-Identification

Flexible Options

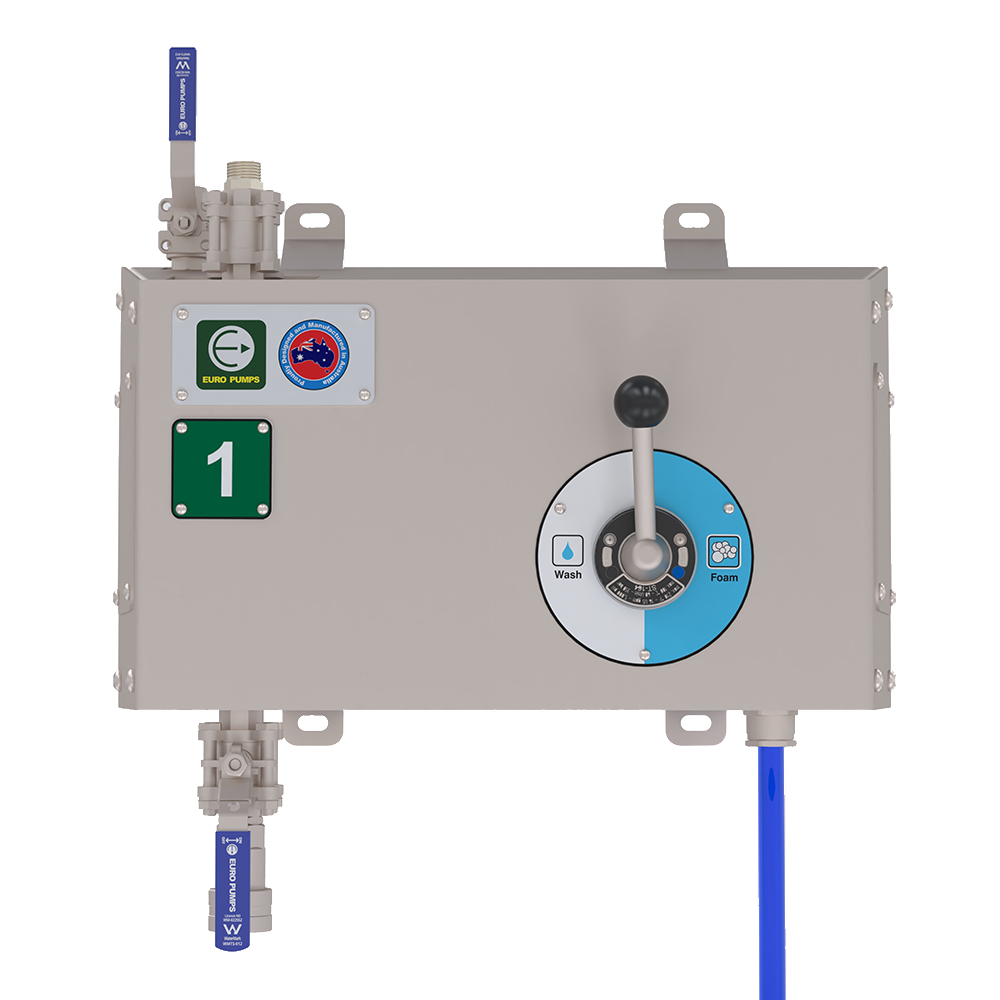

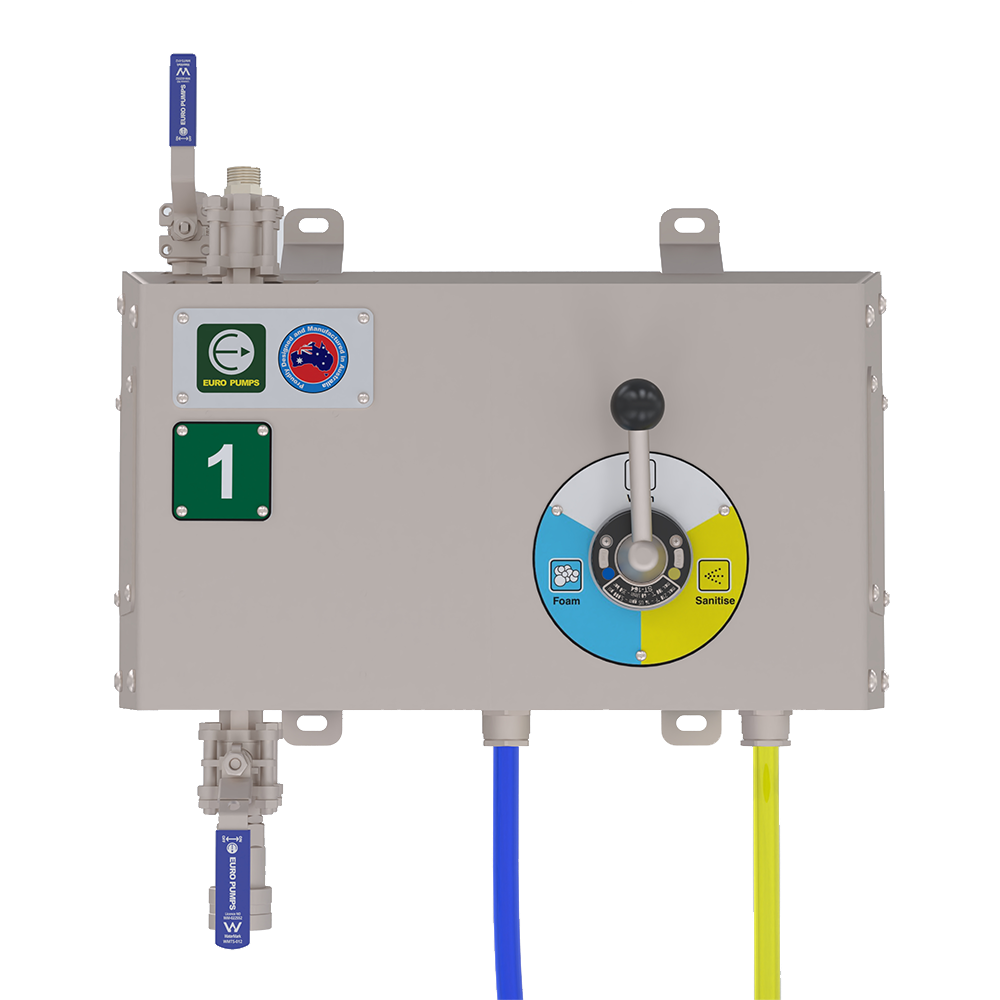

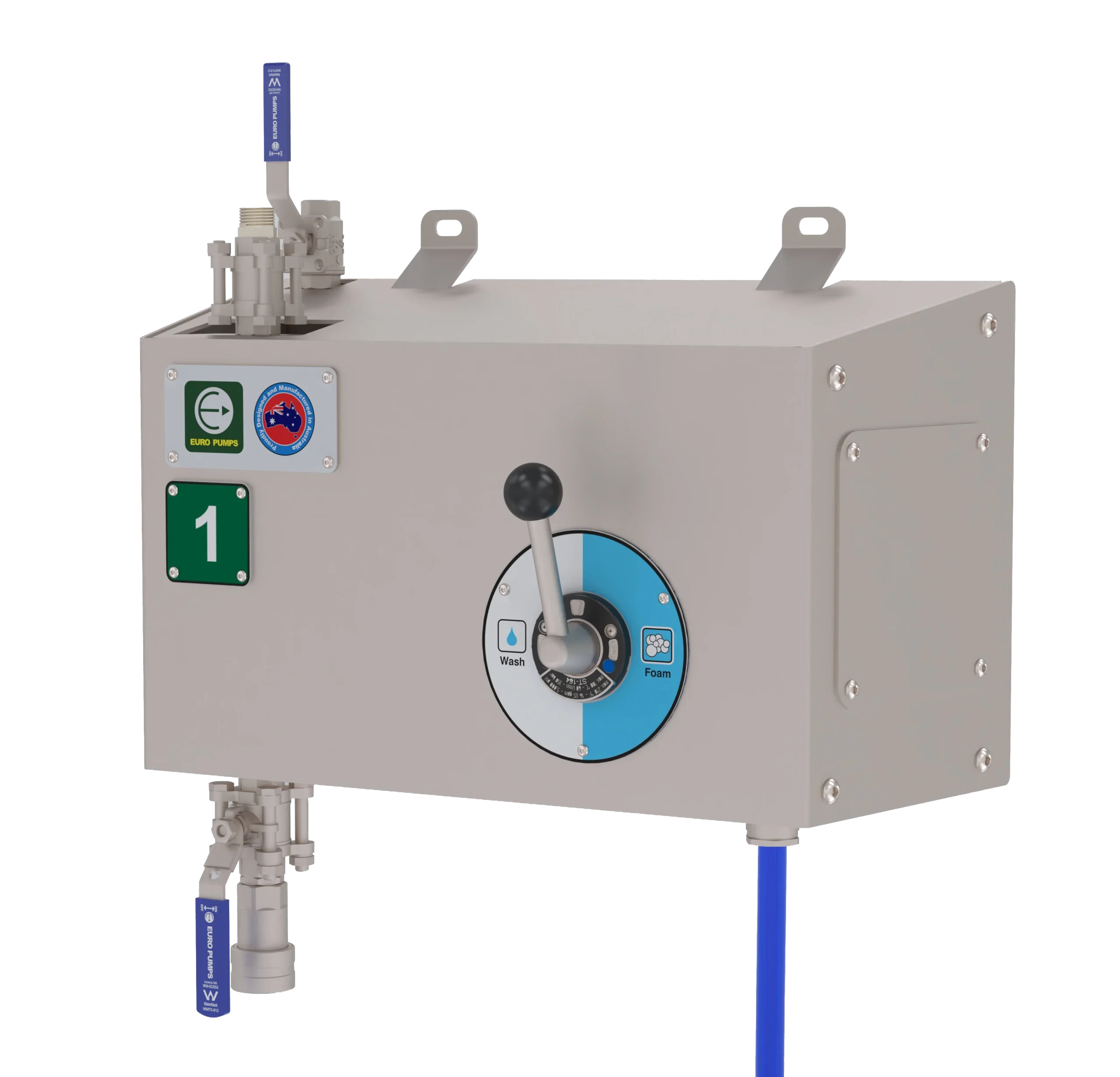

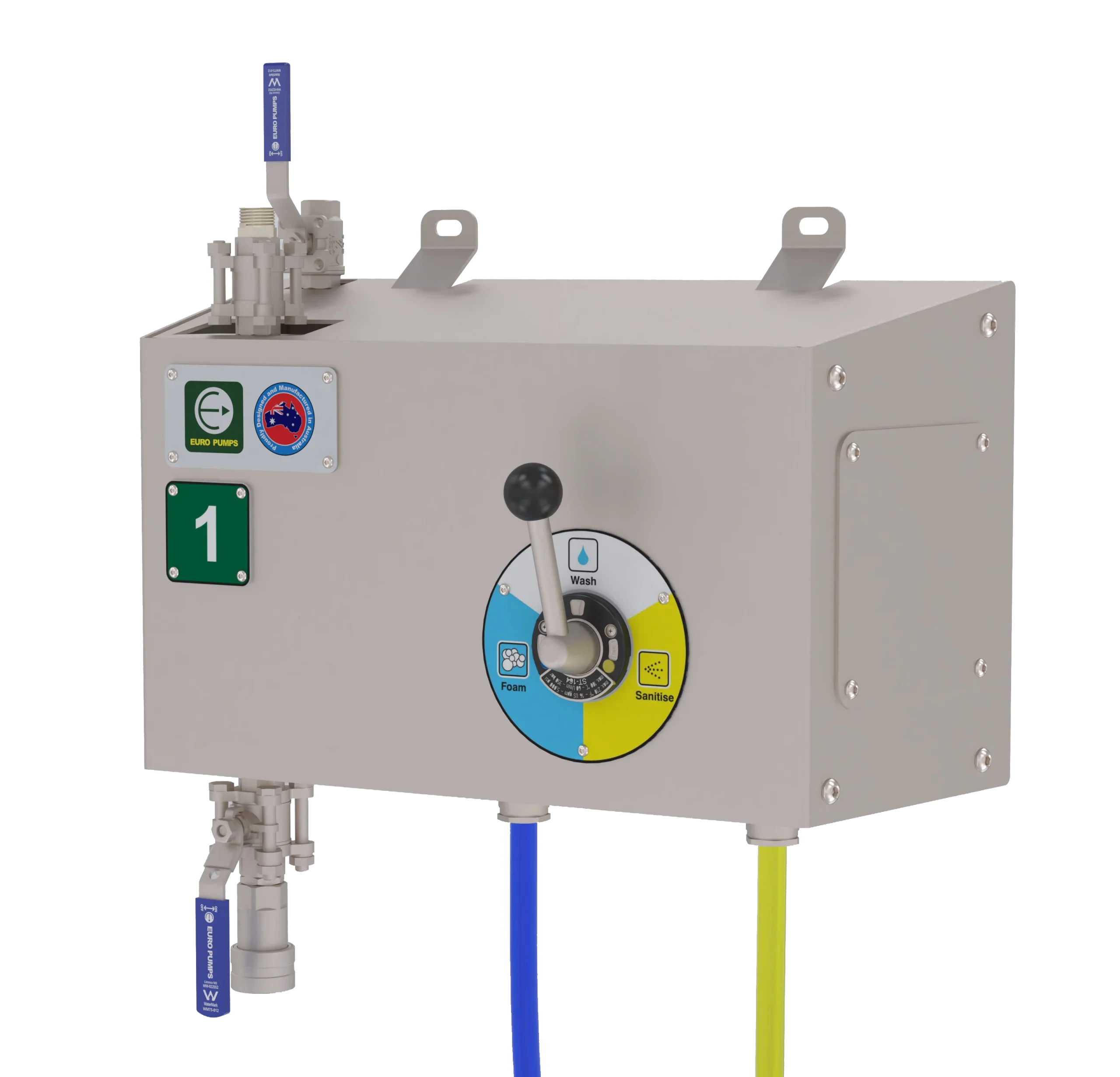

The Euro Pumps Satellite has options for the desired number of chemical injection chambers to suit your needs. Options range from single, double, and triple injection points. This allows for potential savings if the chemicals you use are safe to mix or in the contrary gives an all-in-one package that separates hazardous chemicals. This paired with the ability to turn the compressed air on and off to allow foaming with sanitiser makes this satellite a great flexible option for whatever your requirements may be.

 *The triple injection point satellite is still in development. If you require this option please still notify us and we will give you more information.

Service and Warranty

Euro Pumps offers up to a 7-year warranty plan on all foaming satellites. This feature us what truly separates our product from the rest of our competition and makes it the best long term investment money can buy.

Service & Warranty

Rental Plans Available

When getting audit ready or transitioning into a new factory, a Euro Pumps rental plan could make economic sense in the short term. With garunteed service and maitenence included, renting can help be a great short term option to perfect your cleaning cycle.

Equipment Rental
Australian Made
Spare Parts
Service & Warranty
Built for the Real world

Technical Specifications

Water Inlet Size: ½ ” BSPT

Water Outlet Size: ½ ” BSPT

Max Temp: 90 °C

Air Inlet Size: 6mm

Water Pressure Range: 4~150 bar *
Operational Pressure range is set at the factory

Air Pressure Range: 1~6 bar

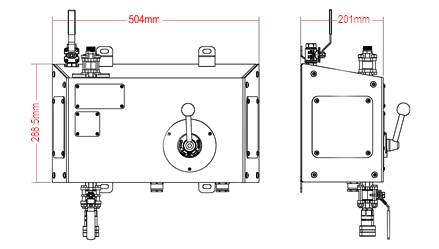

Satellite Dimensional Drawing
